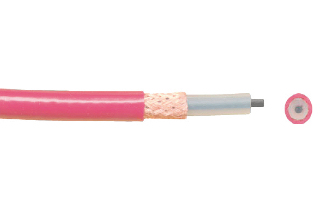

Polyolefin
The polyolefin is the common high voltage cable. We use different variations depending on the requirements of the tube. For more information feel free to contact us.
Show list of all Polyolefin cables.
| Name | Rated Voltage | Test voltage EN 50176 | Rated current | Diameter | Bending radius static | Bending radius dynamic | Datasheet | 3D-Model |
|---|---|---|---|---|---|---|---|---|
| Polyolefin 04 | 90 kV DC | 110 kV DC | 1 mA | ø7,5 mm | 37,5 mm | 75 mm | ||
| Polyolefin 05 | 100 kV DC | 150 kV DC | 2 mA | ø9,5 mm | 47,5 mm | 95 mm | ||
| Polyolefin 06 | 165 kV DC | 200 kV DC | 5 mA | ø11,8 mm | 59 mm | 118 mm | ||

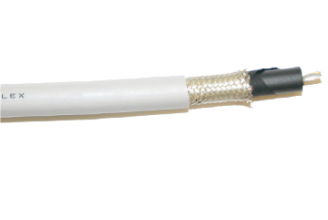

Mammoflex
Mammoflex® cables are high voltage cables are especially for our low-voltage tubes. For more information feel free to contact us.
Show list of all Mammoflex cables.
| Name | Rated Voltage | Rated current | Diameter | Bending radius static | Bending radius dynamic | Datasheet | 3D-Model |
|---|---|---|---|---|---|---|---|
| Mammoflex® | 60 kV DC | 31 A | ø11,1 mm | 22,5 mm | 45 mm |
